Campus, power and winter-protection views from one Blender model.

Return to the tour ↗
Autumn aerial view of the proposed SEED Cambridge campus

S1 — The flagship campus

Autumn · southwest aerial · 3840 × 2160
Download PNG ↓
Winter view from the northeast with the backup generator yard in the foreground

S2 — Winter operation

Northeast view · snow-covered site · 3840 × 2160
Download PNG ↓
North-south section through pod 2, showing the hall and the 150-meter borehole field

S3 — Cooling, above and below

North–south section through pod 2 · 3840 × 2160

Open the full hall-detail rendering ↗

Download PNG ↓

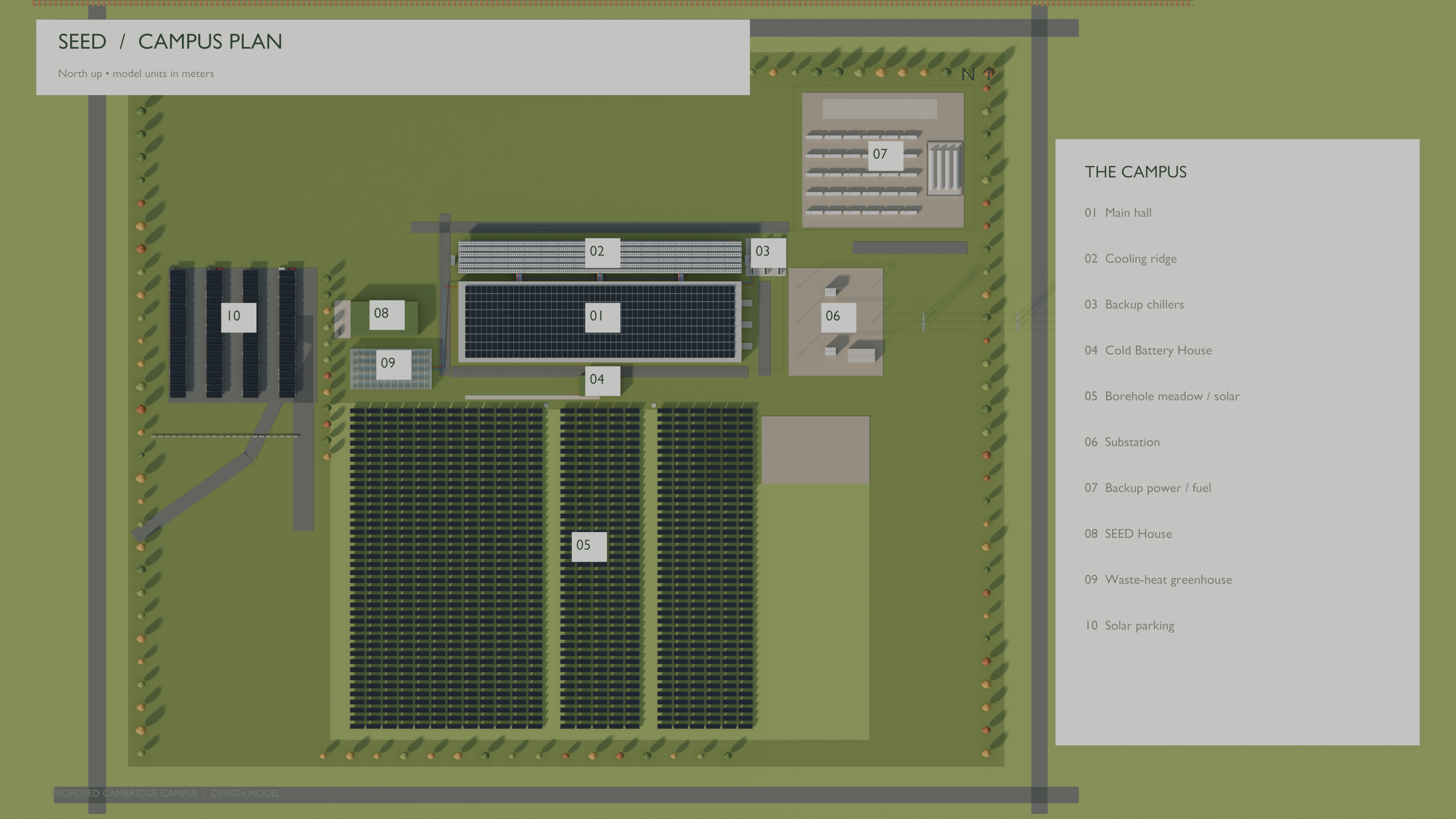

Labeled orthographic site plan with north at the top

S4 — Campus plan

Orthographic · north up · 3840 × 2160
Download PNG ↓
Gold power busways connect UPS distribution to every rack, with separate gray cable trays and red sprinkler lines

Power — From batteries to the racks

Battery cabinets → UPS → distribution → busways → rack drops · 3840 × 2160
Download PNG ↓

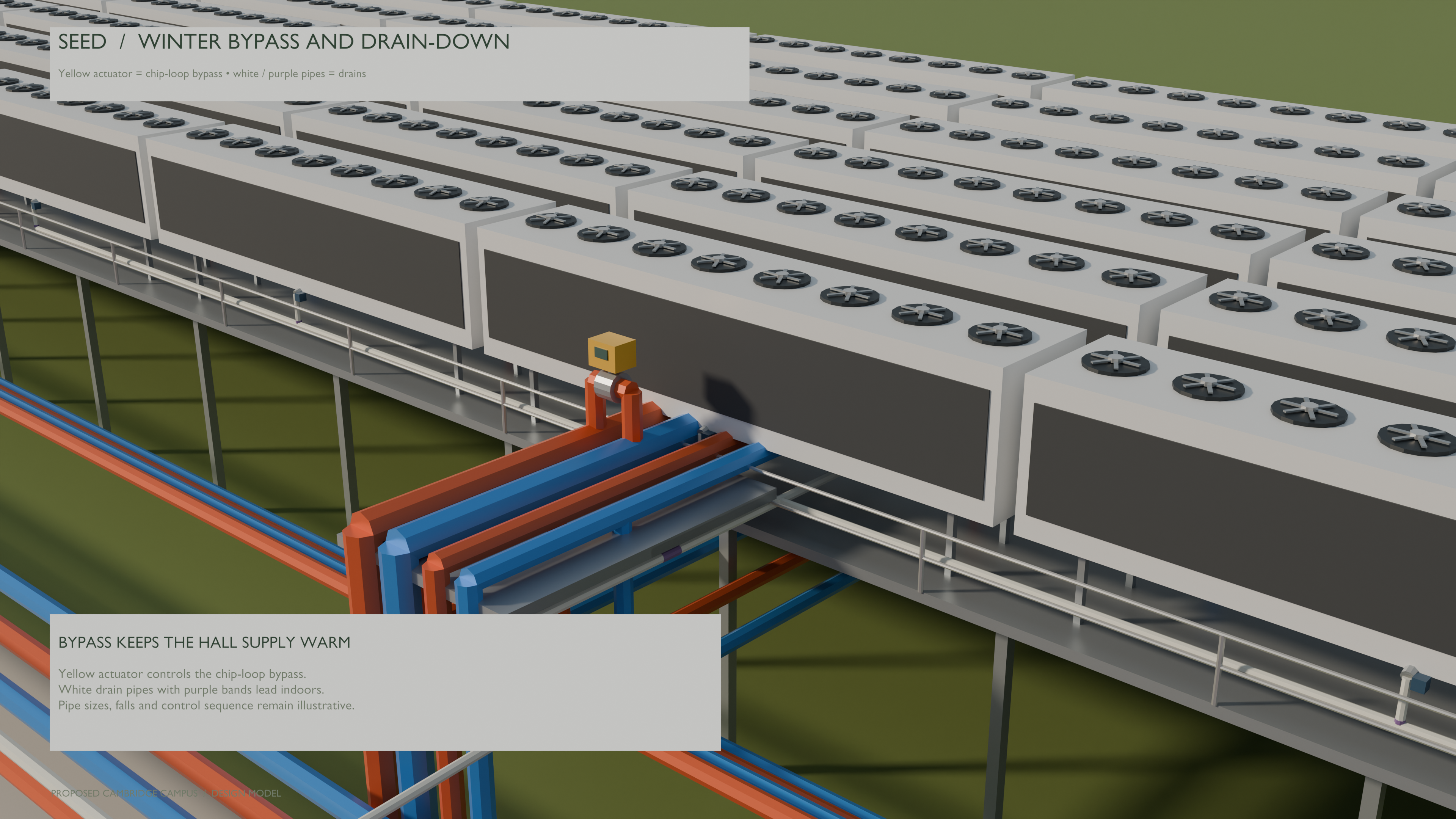

The yellow mixing-valve actuator and separate drain route at the central pipe bridge.

Winter protection — The warm-fluid bypass

The yellow mixing-valve actuator and separate drain route at the central pipe bridge.
Download PNG ↓
Two shut-off valves and an outlet freeze sensor. The low-point drain is on the opposite side.

At each cooler — Isolate and sense

Two shut-off valves and an outlet freeze sensor. The low-point drain is on the opposite side.
Download PNG ↓
Cooler drains lead to the indoor tanks. Sizes and final drainability remain to be engineered.

Indoor storage — Drain-down and expansion tanks

Cooler drains lead to the indoor tanks. Sizes and final drainability remain to be engineered.
Download PNG ↓
A drying coil, outside-air louver and condensate drain. Dehumidification capacity remains to be sized.

Dry halls — Fresh-air equipment

A drying coil, outside-air louver and condensate drain. Dehumidification capacity remains to be sized.
Download PNG ↓

Proposed design; the Cambridge parcel is illustrative. These are Blender renders of the same model used by the interactive tour.
